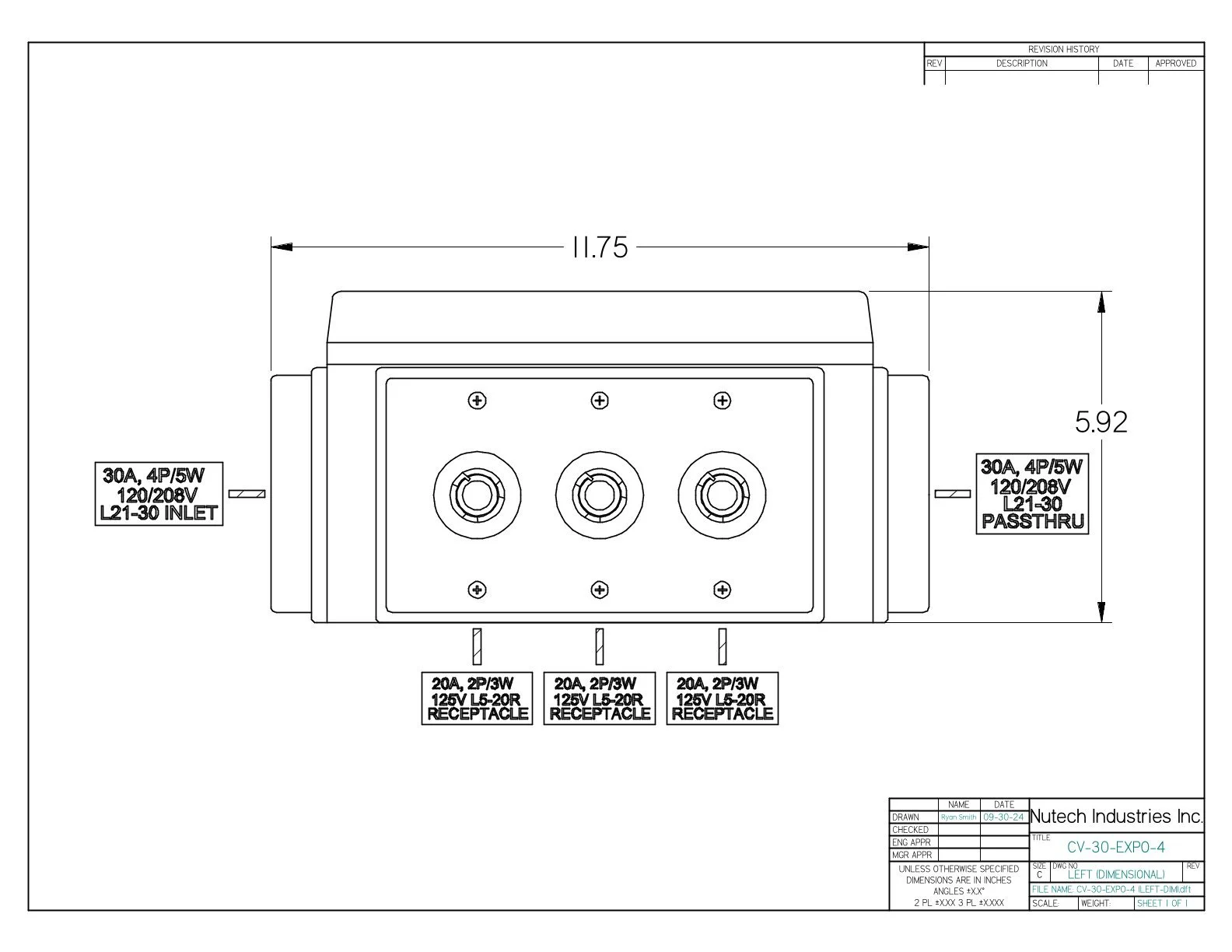

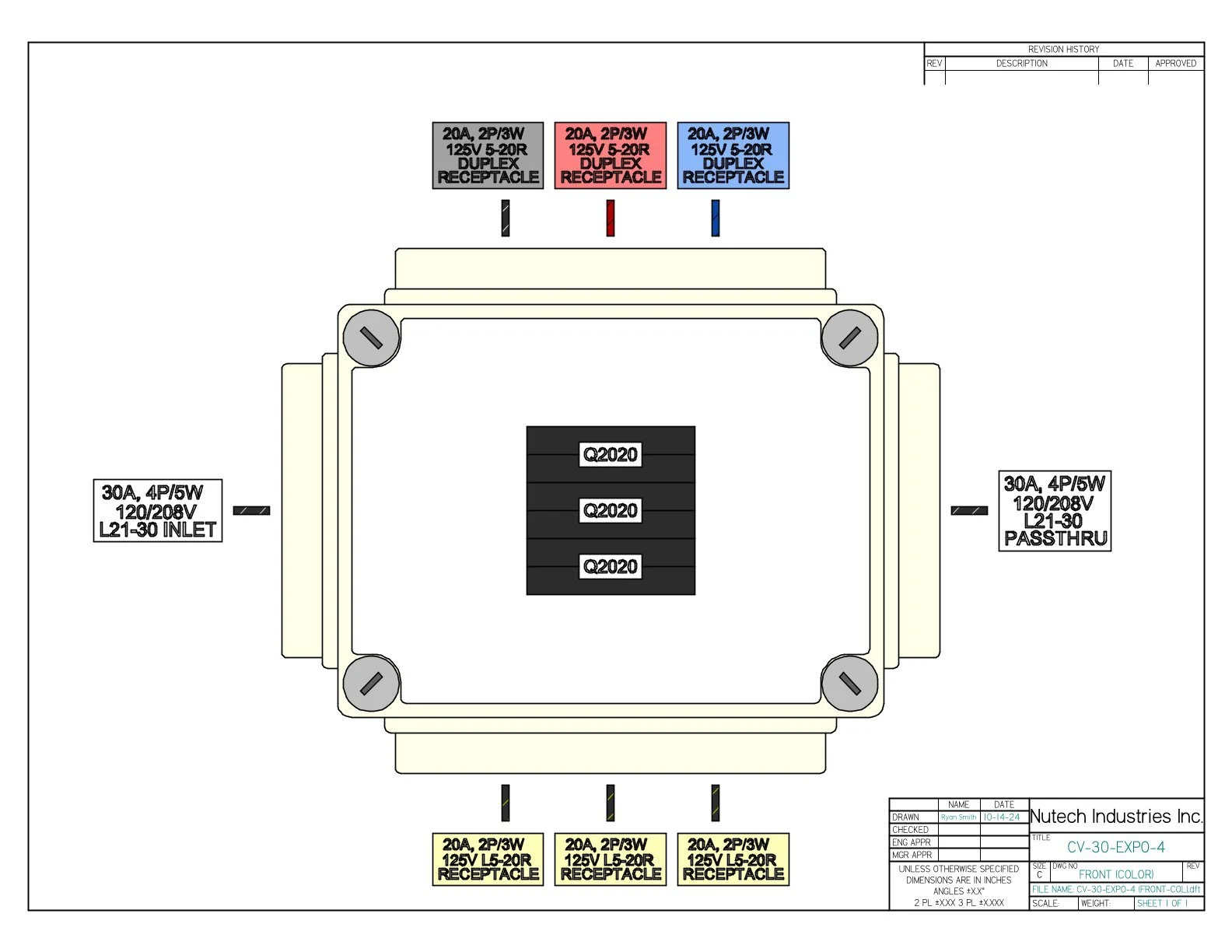

CV-30-EXPO-4
30 AMP, 3PHASE, CUSTOM CLEARVIEW PANEL
INCOMING:
1 EACH 30AMP, 120/208V, 4P/5W, (NEMA L21-30) FLANGED INLET.
OUTPUTS:
3 EACH 20AMP 125V, 2P/3W (NEMA L5-20) RECEPTACLES.
3 EACH 20AMP, 125V, 2P/3W (NEMA 5-20R) DUPLEX RECEPATACLES.
1 EACH 30AMP 120/208V, 4P/5W (NEMA L21-30) PASSTHRU
CIRCUIT PROTECTION:
3 EACH 20AMP, Q2020 CIRCUIT BREAKERS.
